INSIDIX is the representative of NDT solutions : NIKON X-ray solutions and OKOS acoustic microscopy solutions.

INSIDIX also designs and manufactures its own technology : the TDM
(www.tdm-3d.com).

X-ray solutions
X-ray inspection systems by NIKON can be used for various applications : electronic, microelectronic, automotive, medical, plastics processes, railway,etc.

State of the art, user friendly and easy to program, these equipments are designed to facilitate XRAY inspections.

XT V 130

The XT V 130C is a highly flexible and cost-effective electronics and semiconductor inspection system. The system features a 130 kV/10 watt  Nikon Metrology manufactured source, a globally recognized open tube design with integrated generator, and a high-resolution imaging chain.

Through a series of factory and field upgrades, the end-user can configure these systems to their own needs with a higher power source, a rotating sample tray, automatic inspection software, a digital flat panel option, and the ability to add future-proof CT technology.

Benefits:

  • Proprietary 30-130 kv micro-focus source with 2μm feature recognition
  • True 72° manipulator tilting angle allows oblique viewing for easy inspection of internal features
  • Large measurement area of 520×520 mm
  • Intuitive joystick navigation drives real-time X-ray imaging
  • Dual display for combined measurement and real-time analysis
  • Low cost of ownership and maintenance with open-tube technology
  • Safety as a design criterion
  • CT and X.Tract (laminography) ready

>See more

XT V 160

The XT V 160 is specifically designed for use in production lines and failure analysis laboratories. With a precision joystick, system users control the 5-axis sample manipulator. Real-time X-ray allows users to intuitively navigate complex printed circuit boards and electronic components and quickly trace defects. In automated inspection mode, samples can be inspected at highest throughput.

Benefits

  • Leading proprietary micro-focus source technology
  • Fast automated component inspection through customizable macros
  • Intuitive joystick navigation drives real-time X-ray imaging
  • 4K Ultra HD display for combined measurement and real-time analysis
  • Low cost of ownership and maintenance with open-tube technology
  • Safety as a design criterion
  • CT and X.Tract (laminography) ready

>See more

XT H 225-450

The XTH (horizontal) systems allow the inspection of bigger samples, with high resolution. The tomography is really fast thanks to CT ultrafast mode (1/4 faster than conventionnal mode).

Applications: plastics processes, metal processes, material research, …

>See more

Acoustic microscopes (SAM)
The range of ultrasonic systems is wide and applicable to different applications. Design for microelectronic industry, these microsocpes allow precise and high resolution failure analyses on different kind of samples (packages, chips, ...).

SAM Vue 250 P

The SAM Vue 250 P is the most compact model of the OKOS brand.  Affordable, flexible and well designed, the Vue250P is equipped with state of the art software/hardware combination, meeting the challenges of today industries for failure analysis (FA).

Key words : cracks, delamination, defects, debondings, voids.

>See more





SAM Vue 400 P

The acoustic microscope Vue 400 P is designed for failure analysis. This microscope is equipped the last innovations in term of transducers, signal processing and image treatment.

Key words : cracks, delamination, defects, debondings, voids.

>See more

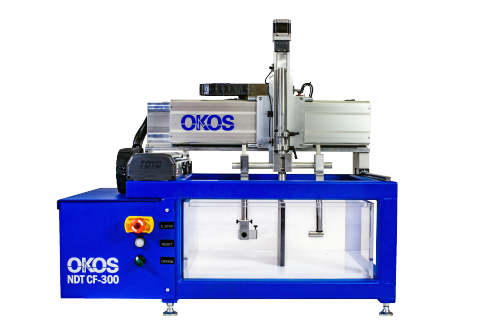

NDT CF 300

This 5 axes scanner allows to perform an inspection on different kind of materials (plastics, metals, alloys, …). Highly used in the research field and by universities, the CF300 is user friendly and can be customized according to applications.

>See more

Autres machines ultrasons

OKOS brand proposes other equipments, for solar panels inspection for example.

For any question, contact us.

TDM machines

All TDM machines

INSIDIX proposes four different TDM models.  The choice between these machines depends upon the size of the samples to analyze, the max/min temperatures to reach for test and the applications.

The four models are :

  • TDM Table Top
  • TDM Large Scale
  • TDM Compact
  • TDM Compact 3

More information, https://www.tdm-3d.com/
